Product Description:

Standard number	YJT 4036
Screw material	SUS304
Spring material	SUS304
Bead material	SUS304

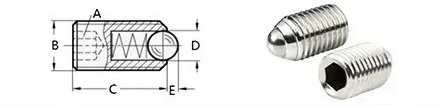

Specifications	Size(mm)					Elasticity value(N) Min.-Max.
	Inner hexagonal groove opposite width (A)	Thread outer diameter (B)	Thread length (C)	Bead diameter (D)	Itinerary E(+/-0.1)
M3X6	1.5	M3-0.5	6	1.5	0.5	2.0-5.0
M3X8			8
M3X10			10
M3X12			12
M4X6	2.0	M4-0.7	6	2.5	0.8	3.0-15.0
M4X8			8
M4X10			10
M4X12			12
M4X16			16
M4X20			20
M5X8	2.5	M5-0.8	8	3.0	1.1	4.0-18.0
MSX10			10
MSX12			12
MSX16			16			5.0-20.0
M5X20			20
M6X8	3.0	M6-1.0	8	3.5	1.3	8.0-35.0
M6X10			10
M6X12			12
M6X16			16
M6X20			20
M6X25			25			10.0-40.0
MBX10	4.0	M8-1.25	10	5.0	1.8	12.0-60.0
M8X12			12
MBX16			16
MBX20			20
MBX25			25
M8X30			30
M10X16	5.0	M10-1.5	16	6.0	2.1
M10X18			18
M10X20			20
M10X25			25			12.0-80.0
M10X30			30			15.0-100.0
M10X35			35
M12X20	6.0	M12-1.75	20	8.0	2.8	18.0-120.0
M12X25			25
M12X30			30
M16X25	8.0	M16-2.0	25	10.0	3.5	20.0-120.0
M16X30			30
M16X35			35
M16X40			40
